5-235 Whitco Standard Spiral Balance

Name: 5-235 Whitco Standard Spiral Balance - Rollerco | Window, Door & Shower Rollers & Spare Parts
Availability: InStock

$21.84 – $51.87 incl. GST

Balance Number & Body Length

Weight Range

Clear

Add to wishlist

SKU: N/A Categories: * Section 5 - Window Catches, Locks & Fittings, Locks & Fittings, Spiral Balance, Timber Window, Timber Windows, Whitco Tag: Locks & Fittings|Window Catches

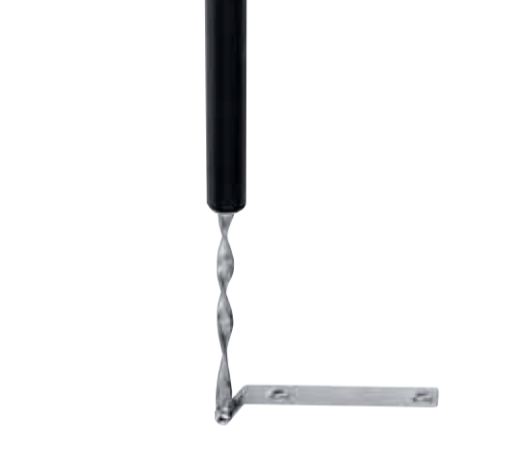

Narrow, fully sealed variable pitch spiral and torsion spring balance and foot system for timber or aluminium double hung windows.

Available in black only.

Balance Number & Body Length

#110 – 292mm, #200 – 318mm, #220 – 343mm, #240 – 368mm, #260 – 394mm, #280 – 419mm, #210 – 445mm, #300 – 470mm, #320 – 495mm, #340 – 521mm, #360 – 546mm, #380 – 572mm, #310 – 597mm, #400 – 622mm, #420 – 648mm, #440 – 673mm, #460 – 699mm, #480 – 724mm, #410 – 749mm, #500 – 775mm, #520 – 800mm, #540 – 826mm, #560 – 851mm, #580 – 876mm, #510 – 902mm, #600 – 927mm, #620 – 953mm, #640 – 978mm, #660 – 1003mm, #680 – 1029mm, #610 – 1054mm, #700 – 1080mm, #720 – 1105mm

Weight Range

2.25kg -7.25kg, 7.25kg – 10kg, 10kg – 14kg

spriral instructions copy
