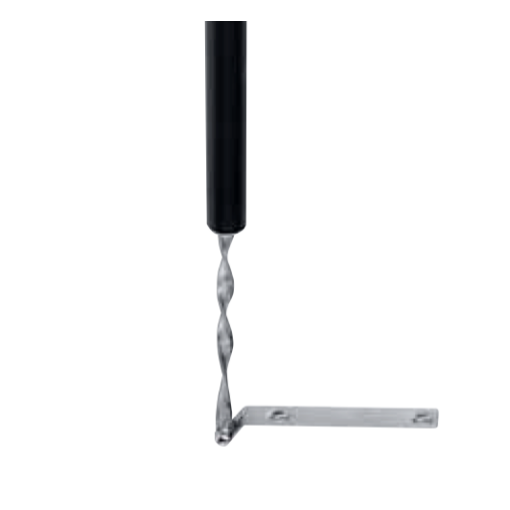

Narrow, fully sealed variable pitch spiral and torsion spring balance and foot system for timber or aluminium double hung windows.
Available in black only.

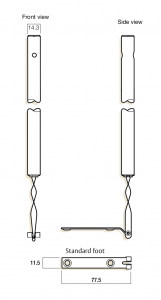

| Balance Number & Body Length | #110 – 292mm, #200 – 318mm, #220 – 343mm, #240 – 368mm, #260 – 394mm, #280 – 419mm, #210 – 445mm, #300 – 470mm, #320 – 495mm, #340 – 521mm, #360 – 546mm, #380 – 572mm, #310 – 597mm, #400 – 622mm, #420 – 648mm, #440 – 673mm, #460 – 699mm, #480 – 724mm, #410 – 749mm, #500 – 775mm, #520 – 800mm, #540 – 826mm, #560 – 851mm, #580 – 876mm, #510 – 902mm, #600 – 927mm, #620 – 953mm, #640 – 978mm, #660 – 1003mm, #680 – 1029mm, #610 – 1054mm, #700 – 1080mm, #720 – 1105mm |
|---|---|
| Weight Range | 2.25kg -7.25kg, 7.25kg – 10kg, 10kg – 14kg |
